Key Specifications / Features
- Model no.: CGS-20250308-TMGS-03
- Hits: 0
- Categories: Trailer Mounted Generator Set
Detail Information

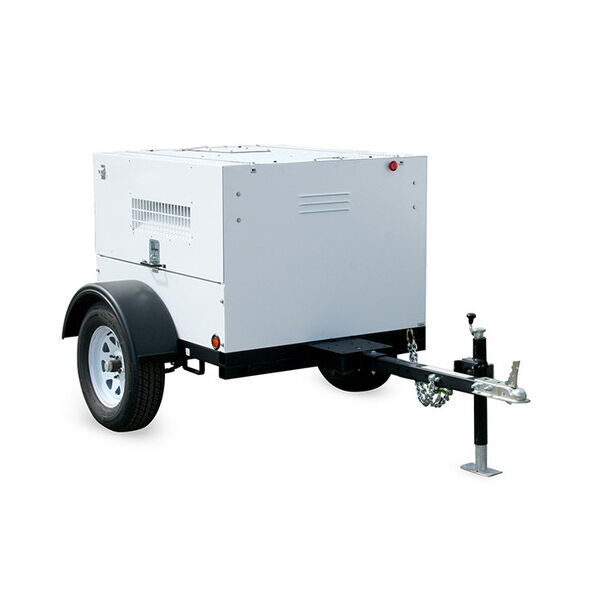

Product Item: 19kW Diesel Generator Set, Trailer Mounted
Fuel Type: Diesel
Phase: Single Phase
Engine: Isuzu 4LE2TAG
Alternator: Marathon
Rated Power: 19kW, 19kVA
Maximum Power: 20kW, 20kVA
Power Factor: 1.0
Frequency: 60 Hz
Speed: 1800 RPM
Rated Voltage: AC 120/240 V
Rated Current: 79A
Maximum Current: 83A
Fuel Tank Capacity: 165 L
Engine Specifications
|
Model |
Isuzu 4LE2TAG |
|
EPA Emissions Compliance |
Tier IV Final |
|
Cylinder |
4 |
|
Type |
Inline |
|
Displacement |
2.2L |
|
Bore |
85 mm |
|
Stroke |
96 mm |
|
Compression Ratio |
TBD |
|
Intake Air Method |
Turbocharged |
|
Engine Governing |
Electronic |
|
Frequency Regulation (Steady State) |
5% |
Major Systems
|
Lubrication System |
Oil Pump Type: Gear |
|
Oil Filter Type: Spin On |
|
|
Crankcase Capacity: 7.6L |
|
|
Cooling System |
Cooling System Type: Water Jacket |
|
Water Pump Type: Belt driven |
|
|
Fan Type: Blower |
|
|
Fan Speed: 1,800 RPM |
|
|
Fan Diameter: 508 mm |
|
|
Coolant System Capacity: 11.3L |
|
|
Fuel System |
Fuel Type: Ultra low sulfur diesel |
|
Fuel Pump Type: Gear |
|
|
Injector Type: Direct |
|
|
Fuel Supply Line Diameter: 7.9 mm |
|
|
Fuel Return Line Diameter: 7.9 mm |
|
|
Engine Electrical System |
System Voltage: 12 VDC |
|
Battery Charger Alternator: 60 A |
|
|
Battery Size: 720 CCA |
|
|
Ground Polarity: Negative |
Alternator Specifications
|
Model |
Marathon Electric 334CSA3028 |
|
Poles |
4 |
|
Field Type |
Rotating |
|
Insulation Class—Rotor |
F |
|
Insulation Class—Stator |
F |
|
Total Harmonic Distortion (THD) |
<5% |
|
Standard Excitation |
Brushless |
|
Bearings |
Single Bearing, Double Shielded |
|
Coupling |
Direct Via Flex Plate |
|
Prototype Short Circuit Test |
Yes |
|
Voltage Regulator Type |
AVR |
|
Quantity of Sensed Phases |
1 |
|
Regulation Accuracy (Steady State) |
±1% |
Trailer Specifications
|
Lighting |
DOT Approved Tail, Side, Brake, and Directional Lights; Recessed Rear Lights |
|
Illuminated License Plate |
|
|
Safety Features |
Transportation Tie Downs |
|
Safety Chains with Spring Loaded Safety Hooks |
|
|
Hitch & Axle |
2 inch (50.8 mm) Ball Hitch |
|
Single Axle—2,200 lb (990 kg) Leaf Spring |
|
|
2,000 lb (907 kg) Tongue Jack with Footplate |
|
|
Wheels & Tires |
Tires: ST175/80, 13 inch Rim (330 mm) |
|
Additional Features |
Spare Tire and Carrier |
|
Plug Adapter—Flat 4 to Round 7 Spade |
|
|
Rear Stabilizer Jacks |
|
|
Toolbox |
Black Polymer or Aluminum, 49×15×18.5 inch(125×38×47 cm) |
|
Hitch Options |
– Combination 2 inch Ball/2-1/2 inch Pintle Ring |
|
– 3 Inch Pintle Ring |
|
|
– 2 inch Ball BULLDOG® |
