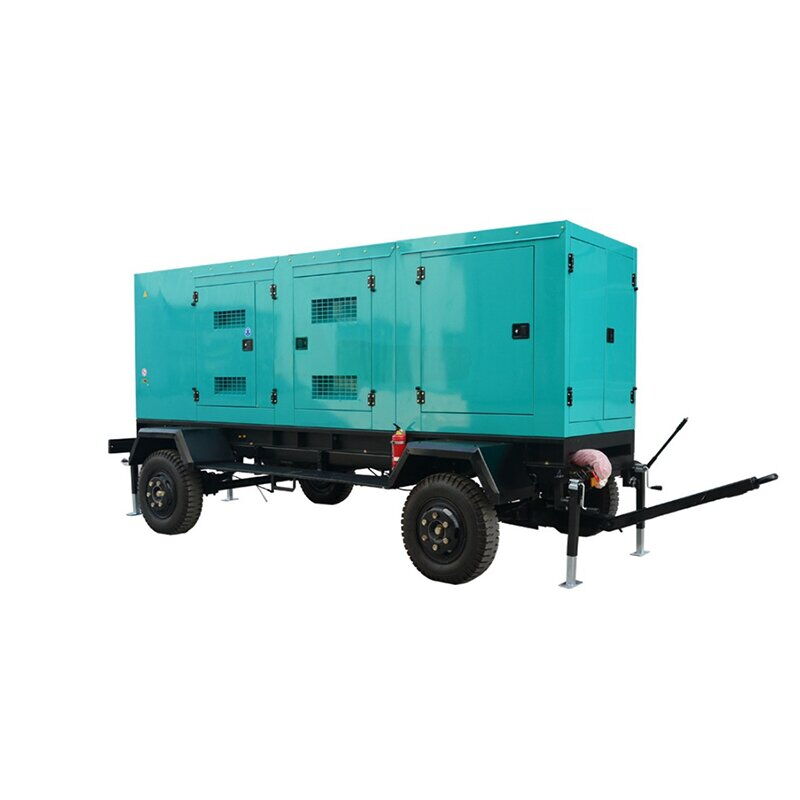

160kW Trailer Diesel Generator, Perkins 1106D-E70TAG4, 60 Hz
Key Specifications / Features
- Model No.: CGS-20250311-TMGS-01
- Hits: 8
- Categories: Trailer Mounted Generator Set
Detail Information
Product Name: Perkins 60Hz Trailer Type Diesel Generator Set
Fuel: Diesel
Engine: Perkins 1106D-E70TAG4
Alternator: Stamford UCI274F
Prime Power: 160kW, 200kVA
Standby Power: 176kW, 220kVA
Power Factor: 0.8
Frequency: 60 Hz
Output Voltage: 240 V
Rated Current: 472A
Oil Consumption: 0.126 L/h
Dimension (Soundproof): 3100 * 1080 * 1600 mm
Weight (Soundproof): 1500 kg
Engine Specifications
|
Engine Brand |
Perkins |
|
Engine Model |
1106D-E70TAG4 |
|
No. of Cylinders |
6 Cylinders in line |
|
Bore × Stroke |
105 mm × 135 mm |
|
Displacement |
7.01 L |
|
Cooling Fan Air Flow |
174 m³/min |
|
Compress Air Flow |
9.4 m³/min |
|
Exhaust Gas Flow |
24.4 m³/min |
|
Exhaust Gas Temperature |
478°C |
|
Lubrication Oil Capacity |
16.5 L |
|
Cooling Water Capacity |
21 L |
|
Starting Voltage |
12 V |
|
Engine Max. Output Power |
209 kW |
Alternator Specifications
|
Alternator Brand |
Stamford |
|
Alternator Model |
UCI274F |
|
Rated Output |
178kVA |
|
Frequency |
60 Hz |
|
Insulation Class |
H |
|
Protection Grade |
IP23 |
|
Altitude Capability |
≤ 1000 m |
|
Optional Alternators |
Leroy Somer, Marathon, Mecc Alte, Chinese brand brushless alternators |
Control Panel Specifications
|
Controller Model |
Deepsea DSE7320 |
|
Main Functions |
Automatic start/stop, automatic battery charger, emergency stop, AMF (Automatic Mains Failure), remote control, microprocessor-based, LED and sound alarms |
|
Display Features |
Voltage (Uab, Ubc, Uca) Current (Ua, Ub, Uc) Temperature (°C/°F) Frequency (Hz) Power (kW, kVA, kWh, kVAr, kVArh, kVAh) Engine pressure (kPa/Psi/Bar) Starts count (up to 999999) Charging and Battery Voltage (V DC) |
Protections and Alarms
- Over / Under Speed (Alarm & Shutdown)
- Start / Stop Failure (Alarm)
- Over Current (Alarm & Shutdown)
- Under / Over Voltage (Alarm & Shutdown)
- Low Oil Pressure (Alarm & Shutdown)
- High Engine Temperature (Alarm & Shutdown)
- Overload (Alarm & Shutdown)
- Low and High Battery Voltage (Alarm)
- Loss of Speed Signal (Alarm & Shutdown)
- Charge Failure (Alarm)
Features of Mobile Trailer Type Generator Set
- Outdoor and Maneuverability: The mobile trailer-type generator set is designed for outdoor use, offering excellent maneuverability in various environments.
- Wheel Chassis Traction Device: The built-in wheel chassis traction device helps to secure the generator and adjust its balance for easy transport.
- Transport Safety Compliance: Equipped with turn signals, brake lights, and tail lights designed according to transport safety standards, ensuring safe operation during transportation.
- Pre-assembled Cable Reel: A convenient cable reel is pre-assembled, simplifying the customer's operation and making it easier to connect the power supply.
- Trailer Options: Available with either a single-axle or tandem-axle trailer, equipped with a parking brake for enhanced stability during operation.
- External Fuel Port: The generator set features an external fuel port, making fueling more efficient and user-friendly for operators.
- Inertia Braking System: Equipped with a reliable inertia braking system, ensuring safe and stable operation when the generator set is in motion.
- Superior Vibration Reduction: The mobile generator set is equipped with rubber and spring shock absorbers, significantly enhancing its ability to handle rough pavement and reducing vibrations during transport, resulting in a more stable and comfortable travel experience.
- Reliable Braking System: The rope brake connected to the main vehicle ensures reliable braking performance in the event of an accidental unhook, increasing overall safety during transport.
- Enhanced Braking Force: The braking force of each single rope is up to 28% of the total weight, which exceeds the standard required 18%, making the generator set safer and more reliable during use.
