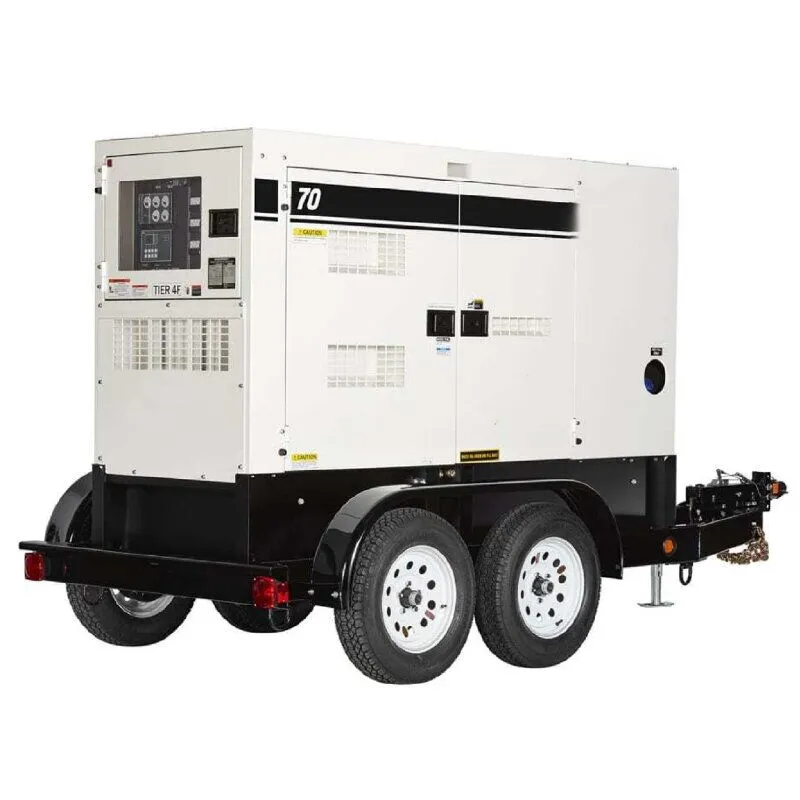

56kW 70kVA Diesel Generator Set, Isuzu 4JJ1X, Trailer Mounted
Key Specifications / Features
- Model No.: CGS-20250310-TMGS-01
- Hits: 9
- Categories: Trailer Mounted Generator Set
Detail Information
Product Item: 56kW 70kVA Diesel Generator Set, Trailer Mounted
Fuel Type: Diesel
Phase: Three Phase
Engine: Isuzu 4JJ1X
Rated Power: 56kW, 70kVA
Maximum Power: 62kW, 77kVA
Power Factor: 0.8
Frequency: 60 Hz
Speed: 1800 RPM
Rated Voltage: 120/208 V
Rated Current: 194 A
Trailer Mounted Genset Specifications
Generator Design | Revolving field, Self-ventilated, Drip-proof, Single bearing |
Voltage Regulation (No Load to Full Load) | ±0.5% |
Power Factor | 0.8 |
Armature Connection | Star with Neutral / Zig Zag |
Excitation | Brushless with AVR |
No. of Poles | 4-pole |
Frequency Regulation (steady state load) | ±0.25% |
Sound Level (Full Load at 7 meters) | 60 dB(A) |
Engine Specifications
Engine Model | Isuzu BJ-4JJ1X |
Engine Type | 4-cylinder, inline, turbocharged, intercooled diesel engine |
Displacement | 3.0 liters (2999 cc) |
Bore x Stroke | 95.4 mm x 104.9 mm |
Compression Ratio | 17.5:1 |
Max Power Output | 95.0 kW (127.4 hp) @ 2500 RPM |
| Continuous Power | 80.8 kW (108.3 hp) @ 2500 RPM |
Max Torque | 408 Nm @ 2000 RPM |
Emission Standard | Tier-3 / Stage-IIIA |
Fuel System | Common Rail Direct Injection (CRDI) |
Cooling System | Water-cooled |
Dry Weight | 320 kg |
Dimensions (L x W x H) | 977 mm x 739 mm x 842 mm |
Fuel Consumption | 23.6 L/h @ 100% load |
Trailer Specifications
Gross Vehicle Weight Rating | 3,175 kg |
Gross Axle Weight Rating | 1,588 kg each axle |
Coupler Rating | 3 inch Pintle Eye, 2 inch Ball Coupler, 2-5/16 inch Ball Coupler |
Tire Size | ST205/75D15 LR-C |
Tire Load Rating | 825 kg per tire |
Wheel Bolt Pattern | 5 Lug on 4.5 inch |
Dimensions (L*W*H) | (4938 * 1841.5 * 615 mm) |
Operating Weight | 493.96 kg |
