Key Specifications / Features
- Model no.: CGS-20250308-TMGS-01
- Hits: 0
- Categories: Trailer Mounted Generator Set
Detail Information

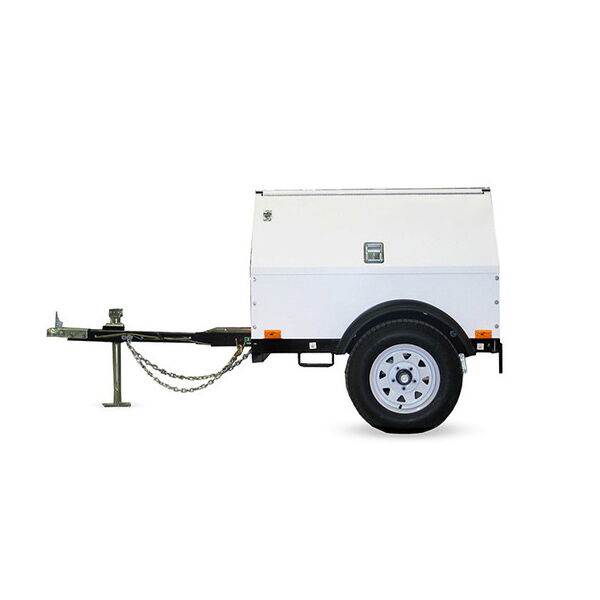

Product Item: Trailer Mounted Diesel Generator Set
Fuel Type: Diesel
Phase: Single Phase
Engine: Kubota D1105-E3BG
Alternator: Marathon
Rated Power: 8.1kW, 8.1kVA
Maximum Power: 9kW, 9kVA
Power Factor: 1.0
Frequency: 60 Hz
Speed: 1800 RPM
Rated Voltage: AC 120/240 V
Rated Current: 33A
Maximum Current: 37A
Fuel Tank Capacity: 212 L
Engine Specifications
|
Engine Model |
Kubota D1105-E3BG |
|
EPA Emissions Compliance |
Tier IV Final |
|
Number of Cylinders |
3 Cylinders |
|
Cylinder Configuration |
In-Line |
|
Displacement |
1.2 L |
|
Bore |
83 mm) |
|
Stroke |
92.4 mm |
|
Compression Ratio |
17.6:1 |
|
Intake Air Method |
Naturally Aspirated |
|
Governor Type |
Mechanical |
|
Frequency Regulation (Steady State) |
<5% |
Lubrication System
|
Oil Pump Type |
Trochoid |
|
Oil Filter Type |
Spin-On Cartridge |
|
Crankcase Capacity |
3.5 qt (3.3 L) |
Cooling System
|
Cooling System Type |
Water Jacket |
|
Water Pump Type |
Belt Driven |
|
Fan Type |
Pusher |
|
Fan Speed |
1800 rpm |
|
Fan Diameter |
330 mm |
|
Cooling System Capacity |
4.2 L |
Fuel System
|
Fuel Type |
Ultra Low Sulfur Diesel |
|
Fuel Pump Type |
Gear |
|
Injector Type |
Direct Injection |
|
Engine Type |
Direct Injection |
|
Fuel Supply Line Diameter |
7.9 mm |
|
Fuel Return Line Diameter |
7.9 mm |
Engine Electrical System
|
System Voltage |
12 VDC |
|
Battery Charger Alternator |
60 A |
|
Battery Size |
440 CCA |
|
Ground Polarity |
Negative (-) |
Alternator Specifications
|
Standard Model |
Marathon Electric 332CSA/B3018 |
|
Poles |
4 |
|
Field Type |
Rotating |
|
Rotor Insulation Class |
F |
|
Stator Insulation Class |
F |
|
Total Harmonic Distortion |
12% |
|
Telephone Interference Factor (TIF) |
N/A |
|
Standard Excitation |
Brushless |
|
Bearings |
Single Bearing, Double Shielded |
|
Coupling |
Direct via Flexible Disc |
|
Prototype Short Circuit Test |
Yes |
|
Voltage Regulator Type |
AVR |
|
Number of Sensed Phases |
1 |
|
Regulation Accuracy (Steady State) |
± 1% |
Trailer Specifications
Lighting & Safety: DOT-approved tail, side, brake, and directional lights; recessed rear lights; illuminated license plate
Safety Features: Transportation tie-downs, safety chains with spring-loaded safety hooks
Hitch & Axle: 2 inch. (50.8 mm) ball hitch, single axle with 2,200 lb (998 kg) leaf spring suspension
Support & Stability: 2,000 lb (907 kg) tongue jack with footplate, rear stabilizer jacks (optional)
Wheels & Tires: 13 inch (330 mm) ST175/80D13 tubeless 6-ply tires
Fenders & Frame: Single-wall polyethylene fenders, 48 inch (1,219 mm) track width
Electrical: Plug adapter (Flat 4)
Hitch Options (Adjustable):
- 2 inch ball / 2.5 inch pintle hitch
- 3 inch pintle ring hitch
- 2 inch BULLDOG® ball hitch
Additional Accessories:
- Spare tire and carrier
- Plug adapter (Flat 4 to Round 7 Spade)
- Toolbox (Black polymer or aluminum) – 49 × 15 × 18.5 inch(125 × 38 × 47 cm)
