Key Specifications / Features
- Model no.: CGS-20250308-TMGS-02
- Hits: 0
- Categories: Trailer Mounted Generator Set
Detail Information

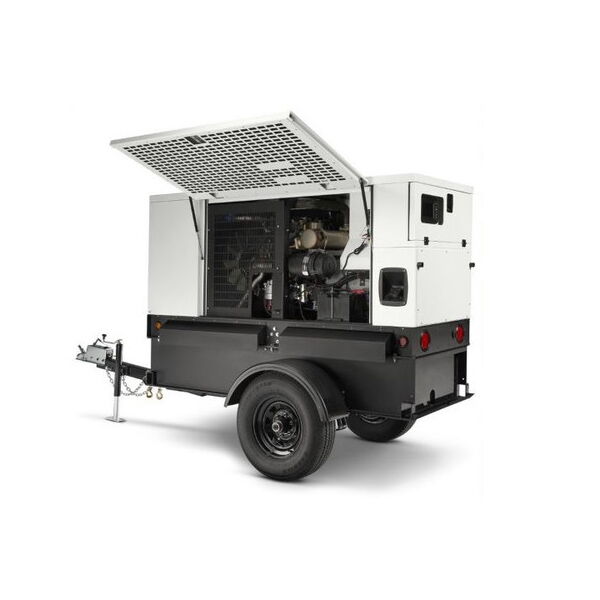

Product Item: 38kW 47kVA Diesel Generator Set, Trailer Mounted
Fuel Type: Diesel
Phase: 3 Phase
Engine: Isuzu 4LE2XAGV01
Alternator: Marathon
Rated Power: 38kW, 47kVA
Maximum Power: 44kW, 55kVA
Power Factor: 0.8
Frequency: 60 Hz
Speed: 1800 RPM
Rated Voltage: AC 120/208 V
Rated Current: 130A
Maximum Current: 153A
Fuel Tank Capacity: 379 L
Engine Specifications
|
Model |
Isuzu 4LE2XAGV01 |
|
EPA Emissions Compliance |
Final Tier 4 |
|
After Treatment System |
DOC (Diesel Oxidation Catalyst) |
|
Number of Cylinders |
4 Cylinders |
|
Cylinder Type |
In-Line |
|
Displacement |
2.2 L |
|
Bore |
85 mm |
|
Stroke |
96 mm |
|
Compression Ratio |
17.6:1 |
|
Intake Air Method |
Turbo/Air-To-Air |
|
Governor Type |
Electronic |
|
Frequency Regulation (Steady State) |
±2% |
Lubrication System
|
Oil Pump Type |
Gear Driven |
|
Oil Filter Type |
Spin-On Cartridge, Full Flow |
|
Crankcase Capacity |
11.4 L |
Cooling System
|
Cooling System Type |
Radiator and CAC (Charge Air Cooler) |
|
Water Pump Type |
Belt Driven |
|
Fan Type |
Pusher |
|
Fan Speed |
2,016 RPM |
|
Fan Diameter |
48.3 cm |
|
Cooling System Capacity |
17 L |
Fuel System
|
Fuel Type |
Ultra Low Sulfur Diesel |
|
Fuel Filtering |
5 µ |
|
Fuel Injection Pump – Make/Model |
Denso (HP3) |
|
Fuel Pump Type |
Engine Gear Driven |
|
Injector Type |
Electronic |
|
Engine Type |
Direct Injection, High Pressure Common Rail |
|
Fuel Supply Line Diameter |
9.5 mm |
|
Fuel Return Line Diameter |
9.5 mm |
Engine Electrical System
|
System Voltage |
12 VDC |
|
Battery Charger Alternator |
12 VDC (50 A) |
|
Battery Size |
720 CCA |
|
Battery Voltage (Quantity) |
12 V (1 Battery) |
|
Ground Polarity |
Negative (-) |
Alternator Specifications
|
Model |
Marathon Electric (285PSL1700) |
|
Poles |
4 |
|
Field Type |
Rotating |
|
Insulation Class - Rotor |
Class H |
|
Insulation Class - Stator |
Class H |
|
Total Harmonic Distortion |
<5% |
|
Telephone Interference Factor |
<50 |
|
Standard Excitation |
Brushless |
|
Bearings |
Single Bearing |
|
Coupling |
Direct, Flexible Disc |
|
Prototype Short Circuit Test |
Yes |
|
Voltage Regulator Type |
AVR (Automatic Voltage Regulator) |
|
Quantity of Sensed Phases |
1 |
|
Regulation Accuracy (Steady State) |
±0.5% |
Control System Specifications
|
Controller Model |
DeepSea DSE7310 MKII |
|
Display Type |
4-line back-lit LCD text display |
|
Operating Temperature Range |
-40 to 158 °F (-40 to 70 °C) |
|
Language Options |
Multiple language options |
|
Timers & Alarms |
Configurable timers and alarms |
|
Start/Stop Timers |
Configurable |
|
Maintenance Alarms |
Configurable |
|
Heated Display |
Yes |
|
Phase Switch |
4-position phase switch |
|
PMG |
Yes |
|
Buck Transformer |
Yes |
|
Cam Locks |
Single set, female |
|
Battery Charger |
10 A |
|
Battery Type |
AGM sealed battery (Optima), 720 CCA |
Trailer Specifications
|
Lighting |
DOT approved tail, side, brake, and directional lights; recessed rear lights |
|
Brakes |
Surge brakes |
|
Tie Downs |
Transportation tie downs |
|
Safety Chains |
Safety chains with spring-loaded safety hooks |
|
Hitch |
2 inch (50.8 mm) ball hitch |
|
Axle |
Single axle – 5,000 lb (2,269 kg) |
|
Tongue Jack |
2,000 lb (907 kg) tongue jack with footplate |
|
Tires |
15 inch (38.1 cm), 6-ply, tubeless |
|
Axle (Alternative) |
Tandem axle |
|
Brakes (Alternative) |
Electric brakes |
|
Toolbox |
Black polymer or aluminum, 49×15×18.5 inch (125×38×47 cm) |
|
Stabilizer Jacks |
Rear stabilizer jacks |
|
Hitch (Alternative 1) |
2 inch (50.8 mm) BULLDOG® hitch |
|
Hitch (Alternative 2) |
2-5/16 inch (58.7 mm) BULLDOG® hitch |
|
Lunette Ring |
3 inch (76.2 mm) lunette ring |
|
Spare Tire |
Yes |
