Key Specifications / Features
- Model no.: CGS-20250324-DGS-02
- Hits: 5
- Categories: Diesel Generator Sets
Detail Information

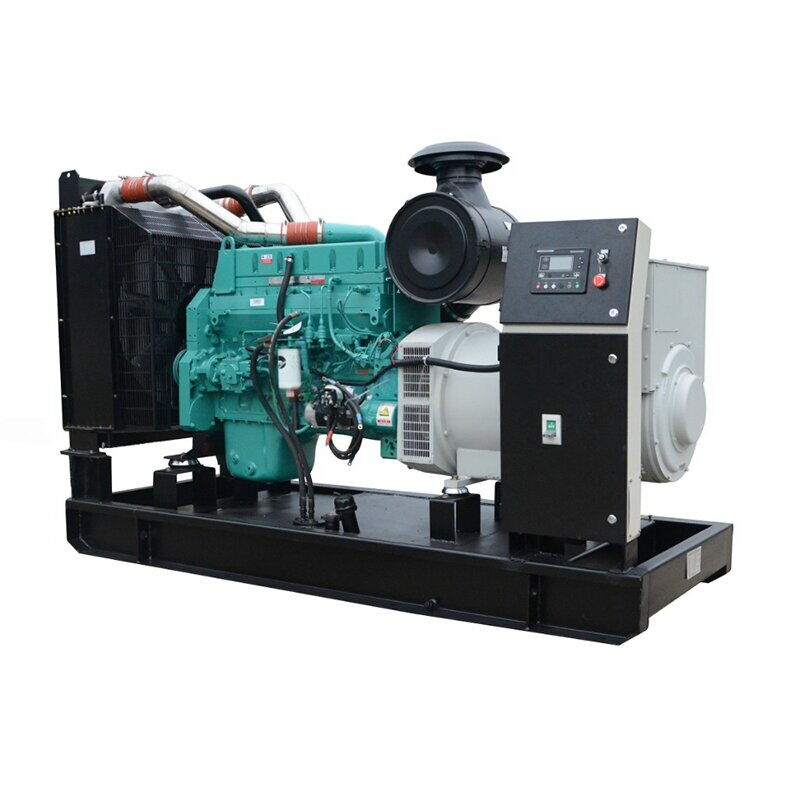

Product Name: 280kW 350kVA Cummins Diesel Generator Set
Fuel Type: Diesel
Engine: Cummins NTA855-G1B
Alternator: Stamford HCI444D
Rated Power: 280kW, 350kVA
Max. Power: 308kW, 385kVA
Frequency: 60 Hz
Speed: 1800 RPM
Rated Voltage: 220/127 V
Rated Current: 918.5 A
Dimensions: 3250 * 1100 * 1720 mm
Weight: 3900 kg
Engine Specification
|
Engine Brand |
Cummins |
|
Engine Model |
NTA855-G1B |
|
No. of Cylinders |
6 cylinders, in-line |
|
Aspiration |
Turbocharged & Aftercooled |
|
Governor |
Electric |
|
Max. Output Power |
347kW |
|
Displacement |
14.0 L |
|
Starting Voltage |
24 V |
|
Bore × Stroke |
140 mm × 152 mm |
|
Lubrication Oil Capacity |
38 L |
Alternator Specification
|
Alternator Brand |
Stamford |
|
Alternator Model |
HCI444D |
|
Rated Output |
375kVA |
|
Frequency |
60 Hz |
|
Altitude |
≤1000 m |
|
Insulation Class |
H |
|
Voltage Regulation |
AVR Model SX460 |
|
Protection Grade |
IP23 |
|
Optional Alternator Brands |
Leroy Somer, Marathon, Mecc Alte |
Control Panel Specification
|
Controller Brand |
Deepsea |
|
Controller Model |
DSE7320 |
|
Breaker Brand |
Delixi |
|
Breaker Capacity |
80 A |
|
Battery Charger |
Supplied |
|
Emergency Stop Button |
Supplied |
|
Automatic Mains Fail (AMF) |
Supplied |
|
Full Protection Features |
High Temperature Low Oil Pressure Over/Under Speed Overload - Start/Stop Failure Under/Over Voltage |
|
Optional Controllers |
Deepsea, Smartgen, ComAp controllers |
