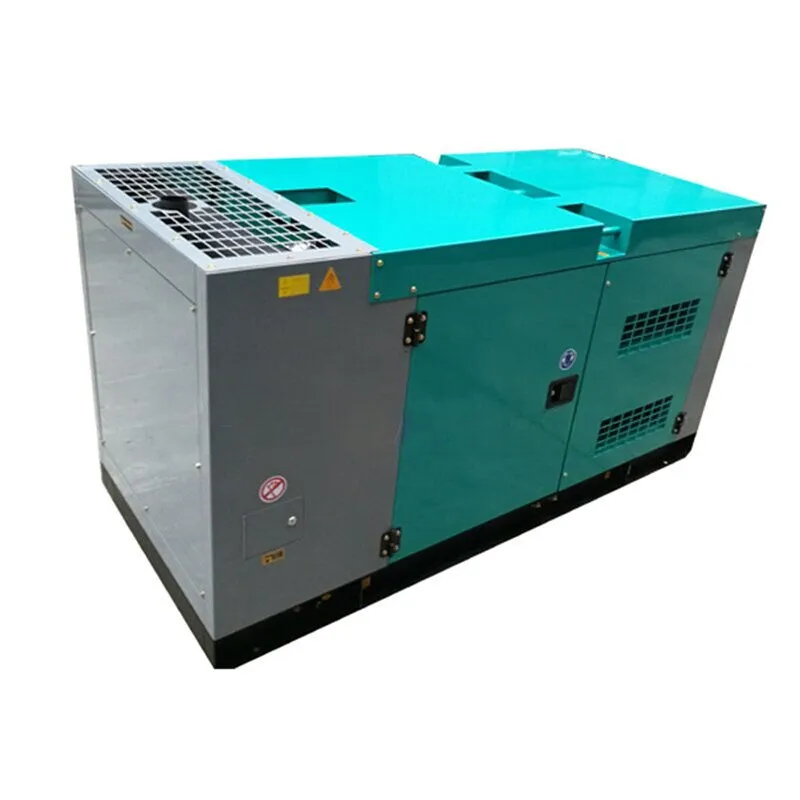

22kW Silent Diesel Generator Set, 50 Hz, Yuchai YC4FA40Z-D20
Key Specifications / Features
- Model No.: CGS-20250328-SGS-01
- Hits: 32
- Categories: Silent Generator Set
Detail Information
Product Name: 22kW 28kVA Yuchai Soundproof Diesel Generator Set
Fuel Type: Diesel
Engine: Yuchai YC4FA40Z-D20
Alternator: Brushless Alternator (Stamford, Leroy Somer, Marathon, Mecc Alte)
Standby Power: 22kW, 28kVA
Prime Power: 20kW, 25kVA
Frequency: 50 Hz
Output Voltage: 400/230V
Oil Consumption: 0.005 L/H
Dimensions: 2100 * 800 * 1250 mm
Weight: 1200 kg
Noise Level: 70 dBA at 7 Meters Away
Engine Specifications
Engine Manufacturer | Guangxi Yuchai Machinery Co., Ltd. |
Engine Brand | Yuchai |
Engine Model | YC4FA40Z-D20 |
No. of Cylinders | 4 (In-line) |
Bore | 92 mm |
Stroke | 100 mm |
Displacement | 2.66 L |
Aspiration | Turbocharged |
Rated Speed | 1500 RPM |
Governor | Mechanical |
Lubrication Oil Capacity | 9 L |
Starting Voltage | 24V |
Max Output Power | 30.8kW |
Alternator Specifications
Rated Output | 25kVA |
Frequency | 50 Hz |
Altitude | ≤1000m |
Insulation Class | H |
Protection Grade | IP23 |
Optional Alternators | Stamford, Leroy Somer, Marathon, Mecc Alte and Chinese brushless alternators |
Control Panel Specifications
Controller Brand | Deep Sea |
Controller Model | DSE7320 |
Functions | Control Panel Functions Automatic genset start/stop Automatic battery charger Emergency stop Automatic Mains Failure (AMF) Remote control capability Microprocessor-based design LED alarm indication and sound alarm |
