Key Specifications / Features
- Model no.: CGS-20250327-SGS-03
- Hits: 9
- Categories: Silent Generator Set
Detail Information

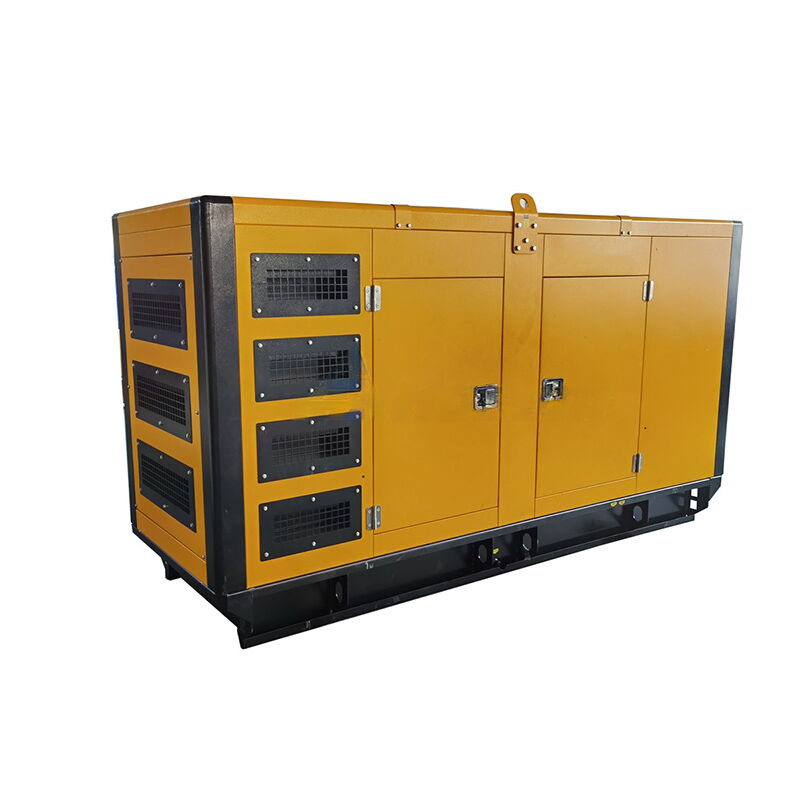

Product Name: 300kW 375kVA Cummins Diesel Generator Set, Soundproof Generator
Fuel Type: Diesel
Engine: Cummins 6ZTAA13-G3
Alternator: Stamford HCI444ES
Rated Power: 300kW, 375kVA
Max. Power: 330kW, 413kVA
Frequency: 50 Hz
Rated Voltage: 400/230 V
Rated Current: 541.3 A
Fuel Tank Capacity: 485 L
Dimension: 4350 * 1450 * 2180 mm
Weight: 4020 kg
Noise Level at 7m: 70 dBA
Battery: Two of 180Amps Maintenance-Free Battery
Engine Specification
|
Engine Brand |
Cummins |
|
Engine Model |
6ZTAA13-G3 |
|
No. of Cylinders |
6 Cylinders, Inline |
|
Aspiration |
Turbocharged & Air to Air Aftercooled |
|
Governor Type |
Electric |
|
Engine Max. Output Power |
374kW |
|
Displacement |
13.0 L |
|
Compression Ratio |
17:1 |
|
Starting Voltage |
24 V |
|
Bore |
130 mm |
|
Stroke |
163 mm |
|
Lubrication Oil Capacity |
36 L |
|
Intake Air Flow |
25.5 L/S |
|
Fuel Consumption at 100% Load |
76.5 L/H |
Alternator Specifications
|
Alternator Brand |
Stamford |
|
Alternator Model |
HCI444ES |
|
Protection Grade |
IP23 |
|
Frequency Fluctuation |
≤ ±0.5% |
|
Voltage Distortion |
< 4% |
|
Prime Power |
325kVA (260kW) |
|
Rated Voltage |
400/230 V |
|
Frequency Regulation |
≤ ±0.5% (Stable) |
|
Voltage Control |
AVR |
Control Panel Specification
|
Controller Brand |
Deepsea |
|
Controller Model |
DSE7320 |
|
Control Panel Functions |
Automatic genset start/stop, Battery charger, Emergency stop, AMF, Remote control, Microprocessor-based design, LED alarm indication and sound alarm |
|
Controller Display |
Generator voltage, current, temperature, frequency, power, start count, pressure, charging voltage, battery voltage |
|
Protection Features |
Over/Under Speed Alarm and Shutdown, Start/Stop Failure Alarm, Over Current Alarm, Low Oil Pressure Alarm, High Engine Temperature Alarm, Overload Alarm, Low/High Battery Voltage Alarm, Speed Signal Loss Alarm, Charge Fail Alarm |
