Key Specifications / Features
- Model no.: CGS-20250312-GGS-01
- Hits: 3
- Categories: Gas Generator Sets
Detail Information
Product Name: 500kW 625kVA Natural Gas Generator Set, Fuel-efficent
Fuel: Natural Gas
Engine: Perkins 4008-30TRS2
Alternator: Stamford S5L1D-F41
Power Factor: 0.8
Rated Power: 500kW, 625kVA
Speed/Frequency: 1500 rpm/50 Hz
Voltage: 400/230 V
Rated Current: 902 A
Starting Mode: 24V DC Electric Starting
Dimensions (L × W × H): 5225 * 2352 * 2223 mm
Weight: 5538 kg

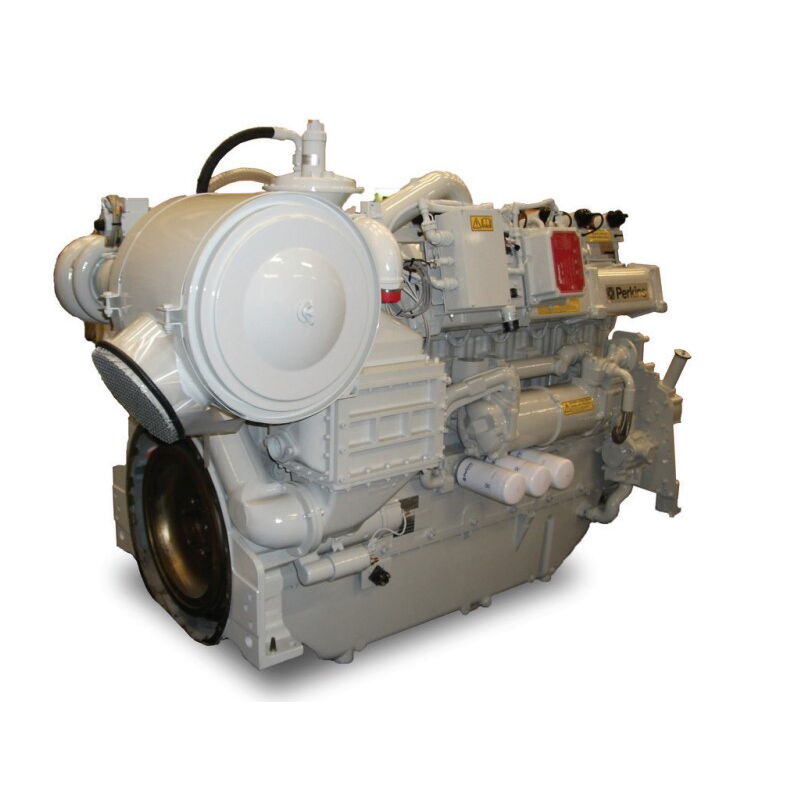

Engine Data
|
Brand |
Perkins |
|
Model |
4008-30TRS2 |
|
Air Intake Way |
Turbocharged, Air-Cooled |
|
Cooling Way |
Closed Cooling Cycle |
|
Cylinder / Arrangement |
8 Cylinders/Inline (L) |
|
Displacement |
30.56 L |
|
Bore |
160 mm |
|
Stroke |
190 mm |
|
Compression Ratio |
12.0 : 1 |
|
Rated RPM @ 50Hz |
1500 rpm |
|
Max. Standby Power @ 50Hz |
526 kW |
|
Governor |
Electronic |
|
Dimensions (L × W × H) |
2658 * 1633 * 1671 mm |
|
Weight |
3350 kg |
Perkins Generator Set Complete Systems
|
Air Intake System |
Engine Air Flow |
2366 m³/hr |
|
Exhaust System |
Exhaust Gas Flow |
6215 m³/hr |
|
Exhaust Temperature |
485 ± 25°C |
|
|
Max. Back Pressure |
10 kPa |
|
|
Fuel System |
Fuel Type |
Natural Gas |
|
Fuel Supply Pressure |
20 - 50 kPa |
|
|
Main Composition |
≥ 55% |
|
|
Baseload Rating |
2.50 kJ / kWs |
|
|
Fuel Consumption at Rated Load |
136.3 m³/hr |
|
|
Lubrication System |
Oil Consumption @ 100% Load |
≤ 0.14 g/kWhr |
|
Total Oil Capacity |
165.6 L |
|
|
Brake Oil Pressure |
1370 kPa |
|
|
Cooling System |
Coolant Capacity |
48 L |
|
Thermostat Temperature Range |
83 – 95°C |
|
|
Max. Water Temperature |
100°C |
Alternator Data
|
Brand |
Stamford |
|
Model |
S5L1D-F41 |
|
Rated Power |
536kW, 670kVA |
|
Voltage Classes |
400/230 V |
|
Phase |
3 Phase |
|
Power Factor |
0.8 |
|
Excitation Way |
Self-Excited |
|
AVR Type |
AS440 |
|
Rated Ambient Temperature |
40°C |
|
Bearing Number |
1 |
|
Poles |
4 |
|
Insulation Class |
H |
|
Temperature Rise |
H |
|
Protection |
IP23 |
|
Altitude |
≤ 1000 m |
|
Overspeed |
2250 rpm |
|
THD (Total Harmonic Distortion) |
< 5% |
|
THF (Telephone Harmonic Factor) |
< 2% |
|
TIF (Telephone Influence Factor) |
< 50 |
Controller Specification
|
Operating Voltage |
12V/24V |
|
Operating Current (12V) |
380 mA |
|
Operating Current (24V) |
188 mA |
|
Operating Temperature |
-25°C to 70°C |
|
Relative Humidity |
20% - 93% RH |
|
IP Rating (Front) |
IP65 |
|
IP Rating (Back) |
IP20 |
|
Mounting Hole Size |
214 × 160 mm |
|
Net Weight |
0.85 kg |
