Key Specifications / Features
- Model no.: CGS-20250319-SGS-01
- Hits: 0
- Categories: Silent Generator Set
Detail Information

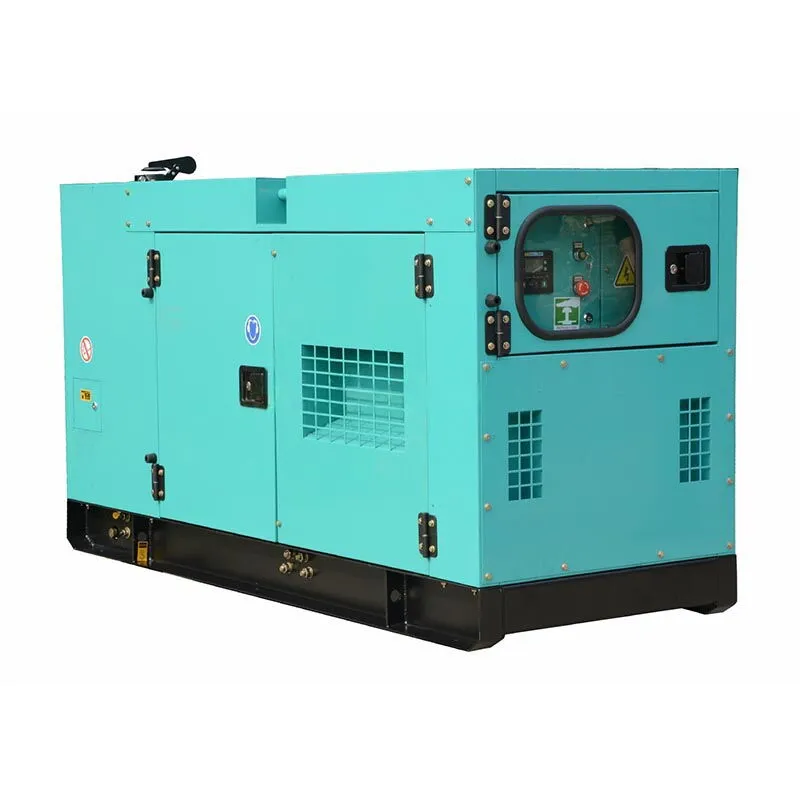

Product Name: 64kW Perkins Silent Diesel Generator Set, Soundproof
Fuel Type: Diesel
Engine: Perkins 1104A-44TG2
Alternator: Leroy Somer TAL-A44-C
Rated Power: 64kW, 80kVA
Max. Power: 70.4kW, 88kVA
Frequency: 50 Hz
Rated Voltage: 400/230 V
Rated Current: 115.5 A
Fuel Tank Capacity: 160 L
Noise Level: 70 dBA at 7 Meters
Battery: 80A Free Maintenance Battery
Dimensions: 2500 * 1080 * 1500 mm
Weight: 1500 kg
Engine Specifications (Perkins 1104A-44TG2)
|
Engine Brand |
Perkins |
|
Engine Model |
1104A-44TG2 |
|
No. of Cylinders |
4 Cylinder in-line |
|
Aspiration |
Turbocharged & Air-to-Air Aftercooled |
|
Governor |
Mechanical |
|
Engine Max. Output Power |
82.5 kW |
|
Displacement |
4.4 L |
|
Compression Ratio |
17.25:1 |
|
Starting Voltage |
12 V |
|
Bore |
105 mm |
|
Stroke |
127 mm |
|
Lubrication Oil Capacity |
7 L |
|
Intake Air Flow |
5.28 m³/min |
|
Fuel Consumption at 100% Load |
18.7 L/h |
Alternator Specifications (Leroy Somer TAL-A44-C)
|
Alternator Manufacturer |
Leroy Somer |
|
Alternator Model |
TAL-A44-C |
|
Rated Output |
85kVA |
|
Frequency |
50 Hz |
|
Altitude |
≤1000 m |
|
Insulation Class |
H |
|
Phase |
3 Phase |
|
Working Temperature |
≤40 °C (without power decrease) |
|
Working Altitude |
≤1000 m (without power decrease) |
|
Automatic Voltage Regulation |
R205 |
|
Protection Grade |
IP23 |
|
Optional Alternators |
Leroy Somer, Marathon, Mecc Alte |
Control Panel Specifications
|
Controller Brand |
Deepsea |
|
Controller Model |
DSE7320 |
|
Breaker Brand |
Delixi |
|
Breaker Capacity |
125 A |
|
Battery Charger |
Smartgen Model BAC06A |
|
Emergency Stop Button |
Supplied |
|
Automatic Mains Fail (AMF) |
Supplied |
|
Fuel Level Monitoring |
Supplied |
|
Automatic Transfer Switch (ATS) |
Optional |
Control Panel Protections
- Start-up fault (shutdown)
- High coolant temperature (alarm & shutdown)
- Low oil pressure (alarm & shutdown)
- Low fuel level (alarm)
- Low coolant level (optional alarm)
- Overload (alarm & shutdown)
- Battery voltage high (alarm)
