Key Specifications / Features
- Model no.: CGS-20250313-GGS-01
- Hits: 2
- Categories: Gas Generator Sets
Detail Information
Product Name: Perkins 875kW Natural Gas Generator Set, High Efficiency
Fuel: Natural Gas
Engine: Perkins 4016-61TRS1
Alternator: Stamford S6L1D-F4
Cylinder Number: 12 Cylinders V Type
Power Factor: 0.8
Rated Power: 875kW, 1094kVA
Speed/Frequency: 1500 rpm/50 Hz
Voltage: 400/230 V
Rated Current: 1579 A
Starting Mode: 24 V/DC Electrical Starting
Dimensions: 5560 * 2600 * 2960 mm
Weight: 11,536 kg
Genset Voltage & Frequency Regulation
|
Steady Voltage Regulation |
≤ ±1% |
|
Transient Voltage Regulation |
−15% ≤ δu ≤ +20% |
|
Voltage Regulation Range |
±5% |
|
Voltage Wave Motion Rate |
≤ ±1% |
|
Voltage Recovery Time |
≤ 4 s |
|
Steady Frequency Regulation |
≤ ±0.5% |
|
Transient Frequency Regulation |
−15% ≤ δf ≤ +10% |
|
Frequency Fluctuation Rate |
≤ ±0.5% |
|
Frequency Steady Time |
≤ 3 s |

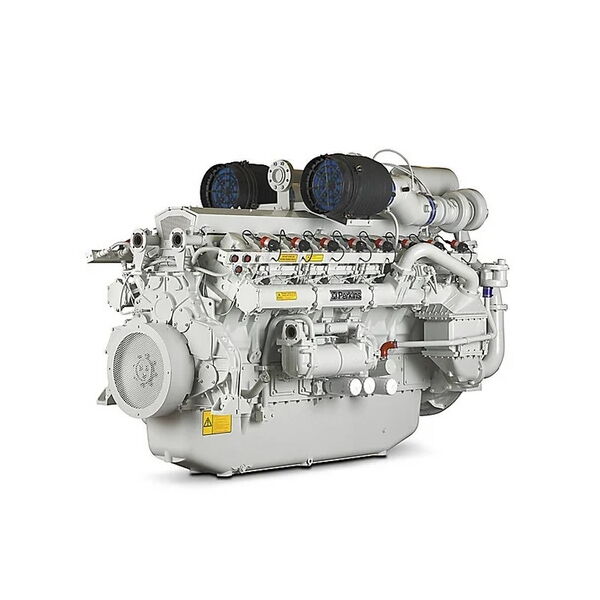

Engine Specifications
|
Brand |
Perkins |
|
Model |
4016-61TRS1 |
|
Air Intake Way |
Turbocharged, Air Cooled |
|
Cooling Way |
Closed Cooling Cycle |
|
Cylinder / Arrangement |
16 / V Type |
|
Displacement |
61 L |
|
Bore |
160 mm |
|
Stroke |
190 mm |
|
Compression Ratio |
12.0 : 1 |
|
Rated RPM @ 50 Hz |
1500 rpm |
|
Max. Standby Power @ 50 Hz |
912 kW |
|
Governor |
Electronic |
|
Dimensions (L × W × H) |
2949 × 1737 × 1969 mm |
|
Weight |
6158 kg |
Engine System Specifications
|
Air Intake System |
Engine Air Flow |
54 m³/min |
|
Exhaust System |
Exhaust Gas Flow |
180 m³/min |
|
Exhaust Temperature |
468 ± 25°C |
|
|
Max. Back Pressure |
10 kPa |
|
|
Fuel System |
Fuel Type |
Natural Gas |
|
Fuel Supply Pressure |
20 - 50 kPa |
|
|
Main Composition |
≥ 55% |
|
|
Fuel Consumption |
136.3 m³/hr |
|
|
Lubrication System |
Oil Consumption @ 100% Load |
≤ 0.25 g/kW·hr |
|
Total Oil Capacity |
286 L |
|
|
Oil Pressure |
470 kPa |
|
|
Cooling System |
Coolant Capacity |
95 L |
|
Thermostat Range |
83 – 95°C |
|
|
Max. Water Temperature |
100°C |
Alternator Specification
|
Brand |
Stamford |
|
Model |
S6L1D-F4 |
|
Rated Power |
920kW, 1150kVA |
|
Voltage Classes |
400 / 230 V |
|
Phase |
3 Phase |
|
Power Factor |
0.8 |
|
Excitation Way |
Self-Excited |
|
AVR Type |
MX341 |
|
Rated Ambient Temperature |
40°C |
|
Bearing Number |
1 |
|
Poles |
4 |
|
Insulation Class |
H |
|
Temperature Rise |
H |
|
Protection Grade |
IP23 |
|
Altitude |
≤ 1000 m |
|
Overspeed |
2250 rpm |
|
Total Harmonic Distortion (THD) |
< 5% |
|
Telephone Harmonic Factor (THF) |
< 2% |
|
Telephone Influence Factor (TIF) |
< 50 |
Controller Specification
|
Operating Voltage |
12V / 24V |
|
Operating Current |
12V: 380 mA |
|
24V: 188 mA |
|
|
Operating Temperature |
−25°C to 70°C |
|
Relative Humidity |
20% – 93% RH |
|
IP Rating (Front) |
IP65 |
|
IP Rating (Back) |
IP20 |
|
Mounting Hole Size |
214 × 160 mm |
|
Net Weight |
0.85 kg |
