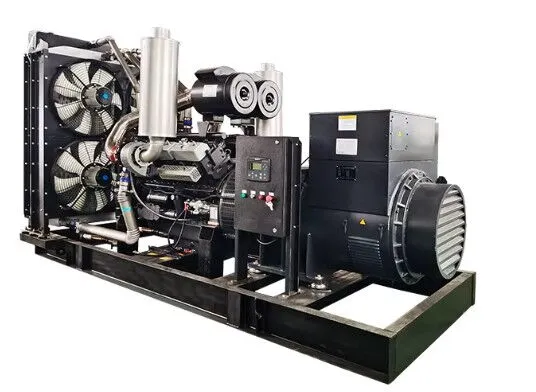

The cooling system of a diesel generator is a critical component that ensures the engine operates at a stable temperature during efficient operation. Its primary purpose is to maintain the engine temperature within a normal range through continuous heat exchange, preventing damage or efficiency loss caused by overheating. The diesel generator's cooling system utilizes a forced circulation water cooling system, where the coolant is pressurized by a water pump and forced to circulate through the engine, absorbing the heat generated and releasing it into the external environment.
Not only does the cooling system directly affect the engine's efficiency and lifespan, but it also involves environmental adaptability and energy-saving requirements. Therefore, ensuring the cooling system is in optimal working condition is a basic responsibility for every diesel generator user.
The cooling system of a diesel generator typically consists of a water pump, radiator, cooling fan, thermostat, water jacket, and auxiliary devices. Each part plays a crucial role and works together to ensure effective cooling.
The water pump is the heart of the diesel generator's cooling system, responsible for drawing coolant from the radiator and forcing it into the engine's water jacket. The circulation of coolant within the engine depends on the operation of the water pump, so pump failure usually leads to the complete failure of the cooling system. The water pump can be driven by a belt, gear, or electric motor. Its design must ensure sufficient flow and pressure to guarantee proper coolant circulation.
The radiator is the key heat dissipation component in the cooling system, designed to transfer the heat from the coolant to the external air through heat exchange, preventing overheating of the coolant. The radiator typically uses metal pipes and external fins to enhance the heat dissipation effect. The selection of the radiator depends on the engine's power and heat load and must possess good thermal conductivity and corrosion resistance.
The cooling fan is an important accessory for the radiator. Its main function is to increase air flow and enhance the heat exchange capability of the radiator. The fan operates by spinning at high speeds to push air through the radiator, improving heat dissipation efficiency. Cooling fans can be either electric or mechanical, with electric fans used for smaller diesel generators and mechanical fans driven by the engine, typically used in larger generators.
The thermostat is a vital component in regulating the coolant temperature within the cooling system, controlling the coolant flow path. At low temperatures, the thermostat remains closed, ensuring that the coolant circulates only within the engine's water jacket for a small loop until the engine reaches its operating temperature. Once the coolant temperature reaches the set range, the thermostat opens, allowing the coolant to pass through the radiator for a large loop and release the engine's heat into the air.
The water jacket is the part of the engine that comes into contact with the coolant. It surrounds the engine's water channels and absorbs heat through heat exchange with the engine. The water jacket typically has multiple cooling channels inside to ensure even coolant flow. It is made from materials with good corrosion resistance and high-temperature performance, such as aluminum alloys or copper alloys.
Auxiliary devices of the cooling system include pressure valves, temperature control valves, pressure regulators, and other components. These parts help maintain the normal operation of the system, ensuring that the coolant circulates within a specific pressure and temperature range. Pressure valves prevent excessive pressure in the cooling system, while vacuum valves ensure that the coolant is replenished and circulates properly.
Antifreeze (or coolant) is an essential fluid in the diesel generator cooling system. It prevents the coolant from freezing at low temperatures and effectively reduces the engine temperature at high temperatures. Antifreeze's primary functions include heat conduction, scale prevention, corrosion resistance, freezing point reduction, and boiling point elevation. The antifreeze used in diesel generators is typically made from ethylene glycol, propylene glycol, or similar chemicals, with various additives to improve corrosion resistance and foam inhibition.
The selection of antifreeze depends on the local climate and engine operating conditions. In colder regions, the antifreeze should have a lower freezing point, while in hotter areas, antifreeze with a higher boiling point and stronger corrosion resistance should be used. A common antifreeze mixture is 50% antifreeze and 50% water, which is suitable for most climates. Antifreeze should be replaced every year or after 2500 operating hours, depending on the manufacturer's recommendations.
Low-Temperature Freeze Protection: The antifreeze should maintain fluidity at low temperatures to prevent freezing.
High-Temperature Heat Dissipation: The antifreeze must effectively dissipate heat at high temperatures to prevent the engine from overheating.
Corrosion Resistance: The antifreeze should have strong anti-corrosion properties to protect the water jacket and other components from corrosion.
Scale Prevention: The antifreeze should prevent the formation of scale within the system, which can affect heat dissipation and coolant flow.
The coolant circulation in a diesel generator is a dynamic process, determined by the engine temperature and the operational status of the cooling system. The thermostat plays a critical role in this circulation. By regulating the flow path of the coolant, the thermostat ensures the engine operates at an optimal temperature, preventing both overheating and excessive cooling.
Coolant flow within the diesel generator occurs in both small and large loops. The small loop is typically activated when the engine is cold, with the coolant circulating only between the water pump and water jacket to quickly heat the engine. Once the engine temperature rises to the operating range, the thermostat opens the large loop, allowing the coolant to pass through the radiator, releasing the engine's heat.
The thermostat automatically controls the coolant flow based on the engine temperature. When the engine temperature is low, the thermostat remains closed, and the coolant circulates only inside the engine. As the temperature rises to the preset level, the thermostat gradually opens, allowing coolant to flow through the radiator. The thermostat typically opens at around 90°C to ensure the engine runs within an ideal temperature range.
The water pump is the core component of the cooling system, responsible for pushing coolant to various parts of the engine. Common faults of water pumps include leakage, vibration, and excessive noise. If the water pump fails, it may result in insufficient coolant flow and cause engine overheating. Regular inspections of the water pump should include checking the tightness of the pump belt, looking for cracks or leaks in the pump body, and checking for bearing wear.
Loose or Broken Water Pump Belt: Check if the water pump belt is functioning properly and replace it when necessary.
Water Pump Leakage: Inspect the water pump seal to ensure there is no coolant leakage.
Water Pump Vibration or Noise: Abnormal vibration or noise during operation may indicate bearing damage or loose internal parts.
The radiator and cooling fan work together to facilitate the heat exchange process of the coolant. The radiator releases heat from the coolant into the air, while the cooling fan increases airflow to enhance heat dissipation.
The radiator transfers the heat from the coolant to the surrounding air through heat exchange. As the coolant enters the radiator, its high temperature allows heat to be transferred through the radiator's fins, which are cooled by air. The radiator's design must ensure sufficient heat transfer area to improve cooling efficiency. Radiator housings are typically made from aluminum alloys, offering excellent thermal conductivity.
The cooling fan's role is to increase airflow and improve the heat exchange efficiency of the radiator. The fan selection depends on the generator's power and cooling requirements. Electric fans are suitable for small generators, while large diesel generators are typically equipped with mechanical fans to ensure sufficient airflow.
The design and installation of the cooling system piping are also critical. The pipes should be installed with minimal bends and resistance to ensure smooth coolant flow. Excessive bends or resistance can reduce cooling efficiency and potentially cause insufficient coolant flow, leading to engine overheating.
Water temperature sensors monitor the coolant temperature, triggering an alarm if the temperature exceeds the preset range. Modern diesel generators are also equipped with overheat protection, which automatically shuts down the system if the temperature becomes too high to prevent engine damage.
The radiator pressure cap maintains pressure within the cooling system. As the temperature rises, the coolant expands, increasing pressure. The pressure valve on the radiator cap opens when the pressure becomes too high, releasing excess coolant into a recovery tank. When the temperature drops, the pressure decreases, and the vacuum valve in the cap automatically opens, drawing coolant back into the radiator.
The cooling system of a diesel generator is fundamental to the stable operation of the engine. It involves the coordinated work of multiple key components such as the water pump, radiator, fan, and thermostat. With proper design and maintenance, the cooling system ensures optimal performance, extending the lifespan of the generator and maintaining its stability. Each maintenance and inspection task should focus on the integrity and efficiency of the cooling system, ensuring that the coolant circulates at the proper temperature and pressure to meet operational demands in varying environments.
