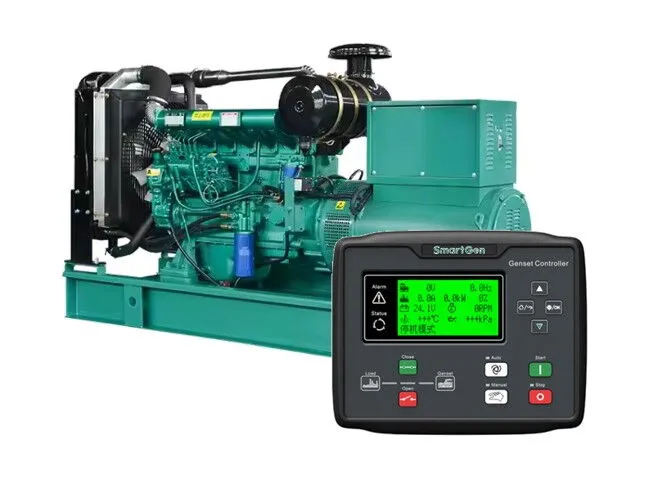

Diesel generator sets play a crucial role as backup power sources, providing essential electricity during power instability or outages. To ensure their efficient and safe operation, the control panel serves as the "brain" of the generator set, undertaking key monitoring and operational tasks. Through real-time monitoring and feedback of the generator set's operating conditions, the control panel assists operators in effective management and troubleshooting. This article provides a detailed explanation of the control panel's functions, structure, installation, operation, and maintenance, highlighting its critical role in diesel generator sets.
The diesel generator set control panel is a vital device for monitoring the generator set's operational status. Its primary functions include the following.
The output current, voltage, and frequency of a generator set are key parameters for its operation. Through the control panel, operators can view these parameters in real-time to ensure the generator set provides stable power output. Common display forms include analog and digital displays. Voltage typically appears as either single-phase or three-phase output, with specific voltage values displayed to help operators assess the power system's condition.
Voltage Monitoring: This helps ensure the generator set's voltage is within the specified range. High or low voltage can damage electrical equipment.
Current Monitoring: Monitoring current helps operators understand the generator set's load and make necessary adjustments to avoid overloading.
Frequency Monitoring: Frequency is crucial for the stability of the power system. The control panel displays the frequency to ensure it stays within the generator set's rated range. Excessive frequency fluctuations can affect grid stability and cause equipment failures.
The engine of a diesel generator set can experience high temperatures or oil pressure issues under heavy load, making the monitoring of oil pressure and water temperature essential. The control panel displays these parameters in real-time.
Oil Pressure Monitoring: The oil pressure in a diesel generator set is vital for the lubrication system. Low oil pressure may lead to inadequate lubrication, causing overheating or mechanical damage. The control panel alerts operators if oil pressure is abnormal.
Water Temperature Monitoring: High engine water temperature is typically caused by cooling system failure or excessive load. Prolonged high temperatures can damage the engine. The control panel provides real-time water temperature data and alerts the operator if the temperature is abnormal, ensuring safe operation.
The control panel is typically equipped with an operating hour recorder to log the total running time of the diesel generator set. This data helps operators predict maintenance cycles, allowing for timely maintenance or replacement of critical components, thus reducing unexpected failures. Some advanced control panels also record faults and alarms, generating historical reports that operators can query and analyze. This data is invaluable for maintenance and troubleshooting.
Modern diesel generator set control panels typically feature advanced fault detection systems that use built-in sensors to monitor various parameters in real time. If any anomalies are detected, such as overload current, low oil pressure, or high water temperature, the system automatically triggers an alarm, prompting the operator to take corrective action. High-end control panels may even display fault codes or warning information directly on the screen to help operators pinpoint the issue.
The control panel is equipped with start and stop buttons, allowing operators to manually start and stop the diesel generator set. Upon starting, the panel performs a series of checks, such as oil pressure, water temperature, and battery voltage, to ensure that all conditions are normal before allowing the generator set to start. When stopping, the panel follows a step-by-step process to safely shut down the generator set.
The design and structure of the diesel generator set control panel must meet industrial standards to ensure stable operation in harsh environments. Key design considerations include user interface friendliness, functional integration, durability, and protection.
Control panels are typically equipped with various gauges, such as voltmeters, ammeters, water temperature gauges, and oil pressure gauges. These gauges are usually mechanical or digital, accurately displaying relevant parameters to help operators monitor the generator set's operational status. Modern control panels often feature digital displays for more intuitive data presentation. These displays may also show graphical representations or text, providing guidance for operators to adjust and control the generator set. For complex monitoring tasks, digital displays can show fault codes and operational instructions, aiding operators in resolving issues quickly.
The control panel includes several buttons and switches, such as:
Start/Stop Button: For manually starting or stopping the generator set.
Emergency Stop Button: For immediately stopping the generator set in case of an emergency to prevent further damage.
Mode Selector Switch: Allows selection of different operating modes, such as manual or automatic mode.
Fault Reset Button: After a fault occurs, operators can use this button to reset the system and return to normal operation.
These buttons and switches are designed for ease of use and quick response, especially in emergency situations.
The control panel's enclosure is usually made of metal and designed to be waterproof, dustproof, and corrosion-resistant. It should also be shock-resistant to minimize the impact of mechanical vibrations on the internal circuitry. Additionally, the panel must have excellent heat dissipation to prevent circuit damage from overheating.
Modern diesel generator set control panels often feature multiple safety designs to ensure stable operation under extreme conditions, such as high and low temperatures, overloads, and short circuits. Some panels are equipped with protective covers and seals to prevent external contaminants from entering the panel, thereby extending its service life.
Control panels vary in design and installation depending on the size of the diesel generator set, functional requirements, and the application environment. Common control panel types include standalone control panels and integrated control panels.
Standalone control panels are typically used with large diesel generator sets, where the panel is separated from the generator set itself. These panels are highly functional, integrating multiple monitoring modules such as voltage, current, water temperature, and oil pressure, and supporting various operating modes. Because they are separated, operators can monitor and control the generator set remotely from the panel.
For medium and small diesel generator sets, integrated control panels are commonly used. These panels are usually integrated with the generator set and provide basic display and control functions sufficient for day-to-day operations. The compact design of integrated control panels makes them suitable for environments with limited space.
Modern diesel generator set control panels often feature intelligent management systems that use sensors and microprocessors to monitor the generator set's operational parameters in real time. When abnormalities are detected, the control panel automatically triggers alarms and takes protective actions. Common self-management and protection functions include:
The control panel monitors both water and oil temperatures. If temperatures become too high, the system will automatically reduce the load or shut down the generator set to prevent overheating and engine damage.
If the generator set's output voltage is abnormal (either too high or too low), the control panel automatically disconnects the power supply to protect electrical equipment from damage. Voltage protection ensures that the generator set operates within safe limits.
If a short circuit occurs, the control panel detects the anomaly and immediately disconnects the power supply, protecting the generator set and electrical equipment from damage.
Some diesel generator sets are equipped with automatic start and shutdown features. When the grid power fails, the control panel automatically starts the generator set. When grid power is restored, the panel automatically shuts down the generator set, ensuring the stability of the power system.
Proper installation and commissioning of the control panel are crucial for the generator set's normal operation. The basic installation process includes:
Wiring: First, connect the generator set's cables to the control panel's input terminal, ensuring proper connections.
Grid Connection: Connect the grid to the control panel's automatic transfer switch to ensure the generator set can be activated during a power outage.
Load Connection: Connect the load lines to the control panel and use current transformers for monitoring current.
System Testing and Debugging: After wiring, conduct system tests to check the accuracy of parameters like voltage, current, oil pressure, and water temperature to ensure they are within normal ranges.
To ensure the long-term stable operation of the diesel generator set and control panel, regular maintenance and care are essential. Common maintenance tasks include:
Checking Engine Oil and Coolant: Regularly check the oil and coolant levels to avoid damage due to insufficient lubrication or overheating.
Replacing Filters and Cleaning Systems: Regularly replace oil, air, and fuel filters to ensure the generator set operates smoothly.
Checking Battery Voltage: Periodically check the battery voltage to ensure it provides sufficient power to start the generator set.
Inspecting Control Panel Connections: Regularly check the electrical connections of the control panel to ensure there are no loose or worn connections, preventing potential failures.
The diesel generator set control panel is a core component for the diesel generator set's normal operation, offering monitoring, fault detection, alarm, and start/stop functions. As technology advances, modern control panels have become increasingly intelligent, enabling more precise monitoring and protection of the generator set. Proper use, installation, and maintenance of the control panel help maximize the generator set's lifespan, ensuring its efficient and safe operation. In critical applications, the diesel generator set and control panel work together to ensure continuous and stable power supply.
