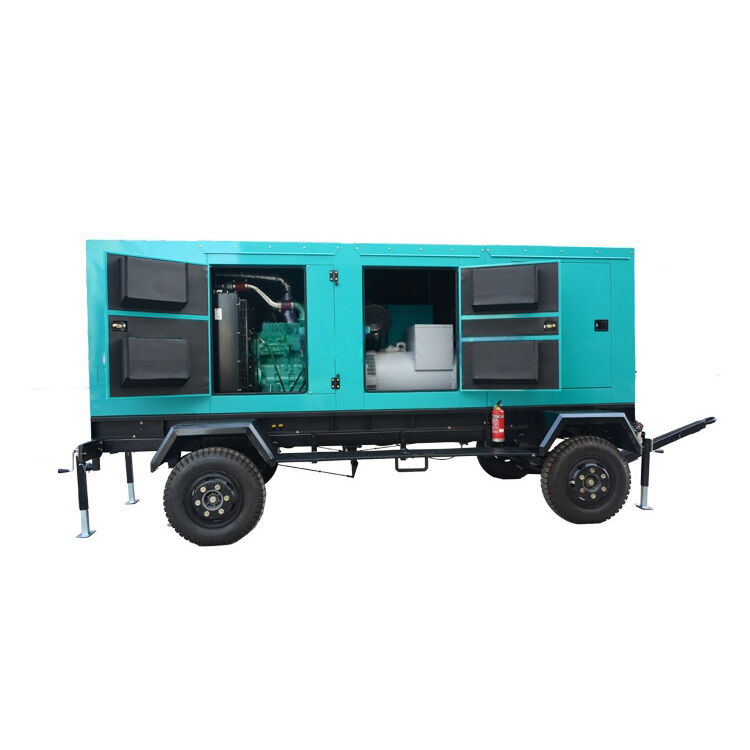

50kW Diesel Generator Set, Cummins 4BTA3.9G2, 60 Hz, Trailer
Key Specifications / Features
- Model No.: CGS-20250314-TMGS-01
- Hits: 3
- Categories: Trailer Mounted Generator Set
Detail Information
Product Name: Cummins 50kW Diesel Generator Set, Trailer Mounted
Fuel Type: Diesel
Engine: Cummins 4BTA3.9G2
Alternator: Stamford UCI224D
Frequency: 60 Hz
Rated Power: 50kW, 63kVA
Maximum Power: 55kW, 69kVA
Rated Voltage: 220/127 V
Rated Current: 164.0 A
Dimension (Trailer Type): 2420 x 1050 x 2300 mm
Weight: 1900 kg
Cummins Diesel Engine Specifications
Brand | Cummins |
Model | 4BTA3.9G2 |
Cylinders | 4 Cylinders, Inline |
Aspiration | Turbocharged & Aftercooled |
Governor Type | Electric |
Max. Output Power | 66 kW |
Displacement | 3.9 L |
Starting Voltage | 24 V |
Bore x Stroke | 102 mm x 120 mm |
Lubrication Oil Capacity | 11 L |
Stamford Alternator Specifications
Brand | Stamford |
Model | UCI224D |
Rated Output | 65kVA |
Frequency | 60 Hz |
Altitude | ≤1000 m |
Insulation Class | Class H |
Voltage Regulation | AVR Model SX460 |
Protection Grade | IP23 |
Optional Alternators | Leroy Somer, Marathon, Mecc Alte, Brushless |
Key Features of Trailer Generator
- Double Axle Trailer for smooth and safe transportation.
- Weatherproof or Soundproof Canopy for outdoor and low-noise operation.
- Built-in Fuel Tank for over 10 hours of continuous operation.
- Wide Capacity Range: 8 kVA to 688 kVA with engines from Cummins, Perkins, Deutz (Germany), and Volvo (Sweden).
- Cooling Options: Water-cooled or air-cooled (Deutz engine models 23kVA to 55kVA only).
Advanced Control Panel Features
- Automatic Start Control Panel for auto start/stop, data measurement, and alarms.
- Battery Charger (208-240V input range).
- On/Off Switch for simple operation.
- Emergency Stop Button for safety.
Applications
- Construction Sites
- Outdoor Events and Venues
- Disaster Relief and Emergency Backup
- Industrial Maintenance and Field Operations
