Key Specifications / Features
- Model no.: CGS-20250313-TMGS-01
- Hits: 0
- Categories: Trailer Mounted Generator Set
Detail Information

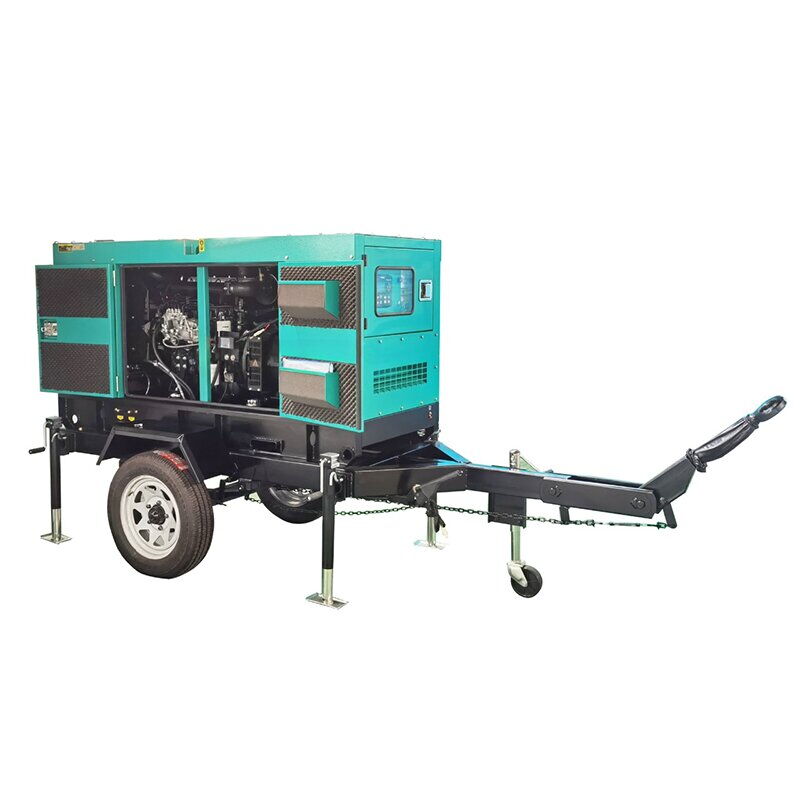

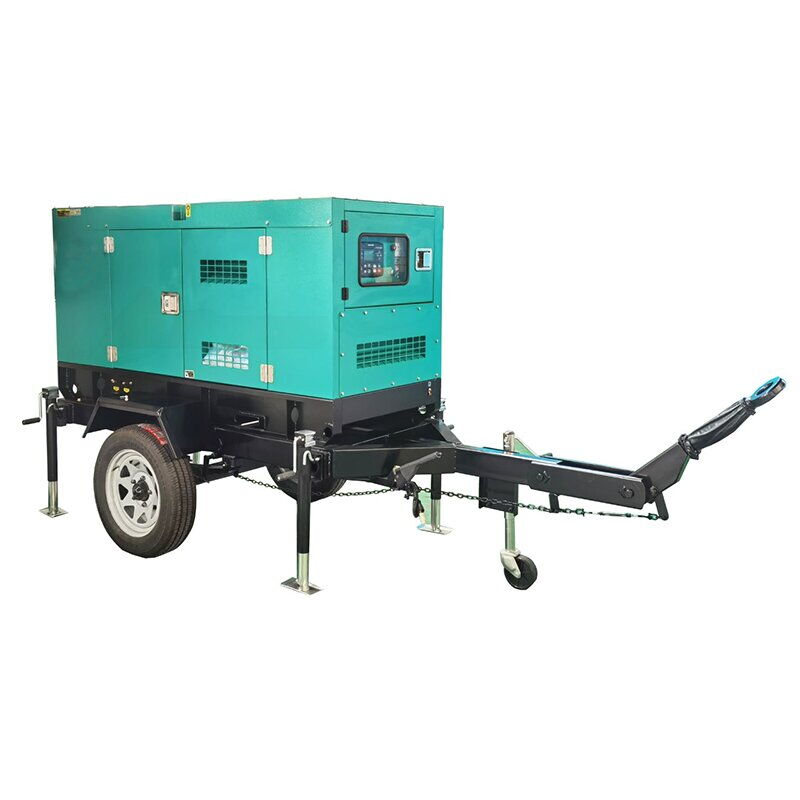

Product Name: Quanchai 20kW Diesel Generator Set, Trailer Mounted for Mobility
Fuel: Diesel
Engine: Quanchai QC498D
Alternator: Brushless Alternator
Rated Power: 20kW, 25kVA
Max. Power: 22kW, 28kVA
Frequency: 50 Hz
Rated Voltage: 400/230 V
Rated Current: 36.1 A
Fuel Tank Capacity: 60 Liters
Dimension for Soundproof Genset: 2050 * 900 * 1100 mm
Weight for Soundproof Genset: 880 kg
Noise Level at 7 Meters: 70 dBA
Battery: One Free Maintenance Battery
Engine Specification
|
Engine Brand |
Quanchai |
|
Engine Model |
QC498D |
|
No. of Cylinders |
4 Cylinders In line |
|
Aspiration |
Naturally Aspirated |
|
Governor |
Mechanical |
|
Engine Max. Output Power |
25 kW |
|
Displacement |
3.200 L |
|
Starting Voltage |
12 V |
|
Bore |
98 mm |
|
Stroke |
105 mm |
|
Lubrication Oil Capacity |
6.8 L |
|
Compression Ratio |
18 : 1 |
|
Intake Air Flow |
2.45 m³/min |
|
Fuel Consumption at 100% Load |
7.3 L/h |
Alternator Specification
|
Rated Output |
25kVA |
|
Frequency |
50 Hz |
|
Altitude |
≤1000 m |
|
Insulation |
Class H |
|
Voltage Regulation |
SX460 |
|
Protection Grade |
IP23 |
|
Working Temperature without Output Decrease |
≤40°C |
|
Phase |
3 Phase |
|
Temperature Rise |
125°C |
|
Alternator for Optional |
Stamford, Leroy Somer, Marathon, Mecc Alte, Brushless |
Control Panel Specification
|
Controller Brand |
Smartgen |
|
Controller Model |
HGM6120N |
|
Breaker Brand |
Delixi |
|
Breaker Capacity (A) |
63 |
|
Battery Charger |
Smartgen Model BAC06A |
|
Emergency Stop Button |
Yes (Supply) |
|
Automatic Mains Fail (AMF) |
Yes (Supply) |
|
Fuel Level |
Yes (Supply) |
|
Automatic Transfer Switch (ATS) |
Optional |
|
Mains Monitor |
Yes (with AMF Function) |
|
Protection & Alarms |
Start-up fault, High Coolant Temp, Low Oil Pressure, Low Fuel Level, Low Coolant Level (optional), Overload, High Battery Voltage |
